ASL introduces Hera 132, enhancing architectural excellence with unrivalled strength, unmatched quality, and versatility in partitioning solutions.

Meticulously crafted with precision and distinguished by the thickest gauge in the market, our profiles establish a new benchmark for strength and quality. Drawing insights from industry leading installers, we’ve seamlessly woven innovation with effortless installation. Experience the pinnacle of partitioning systems with Hera 132.

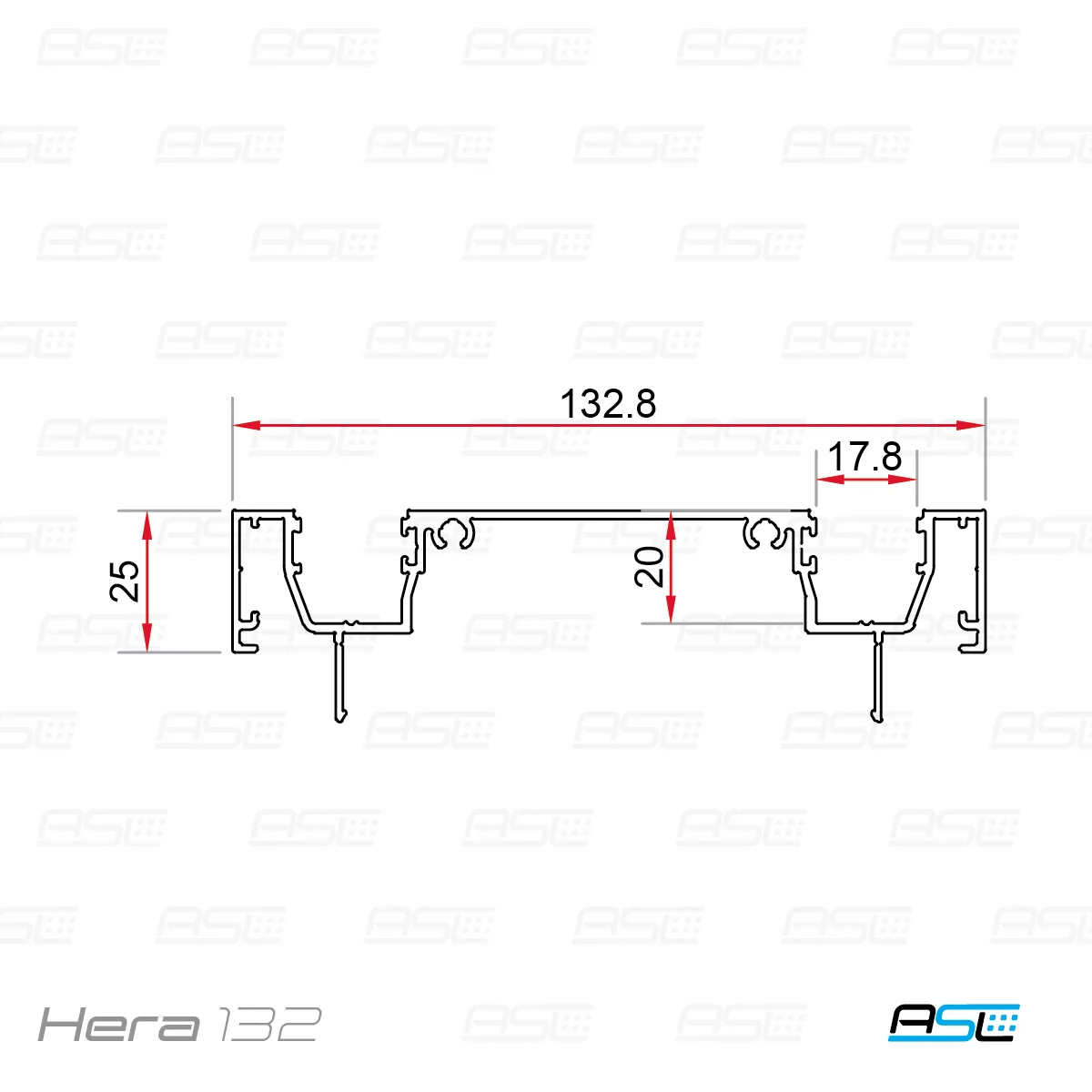

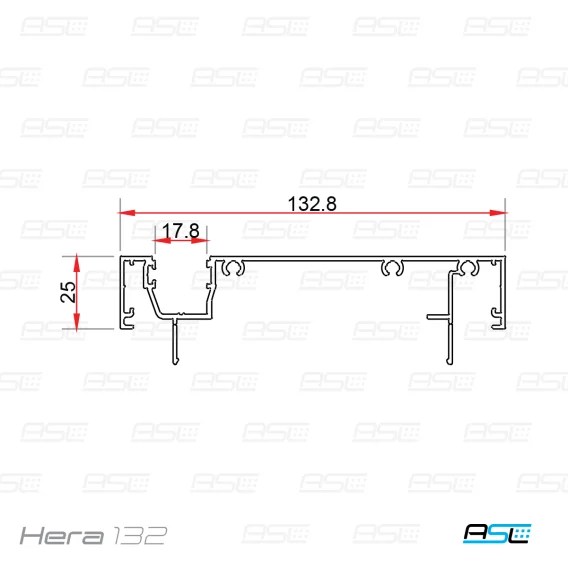

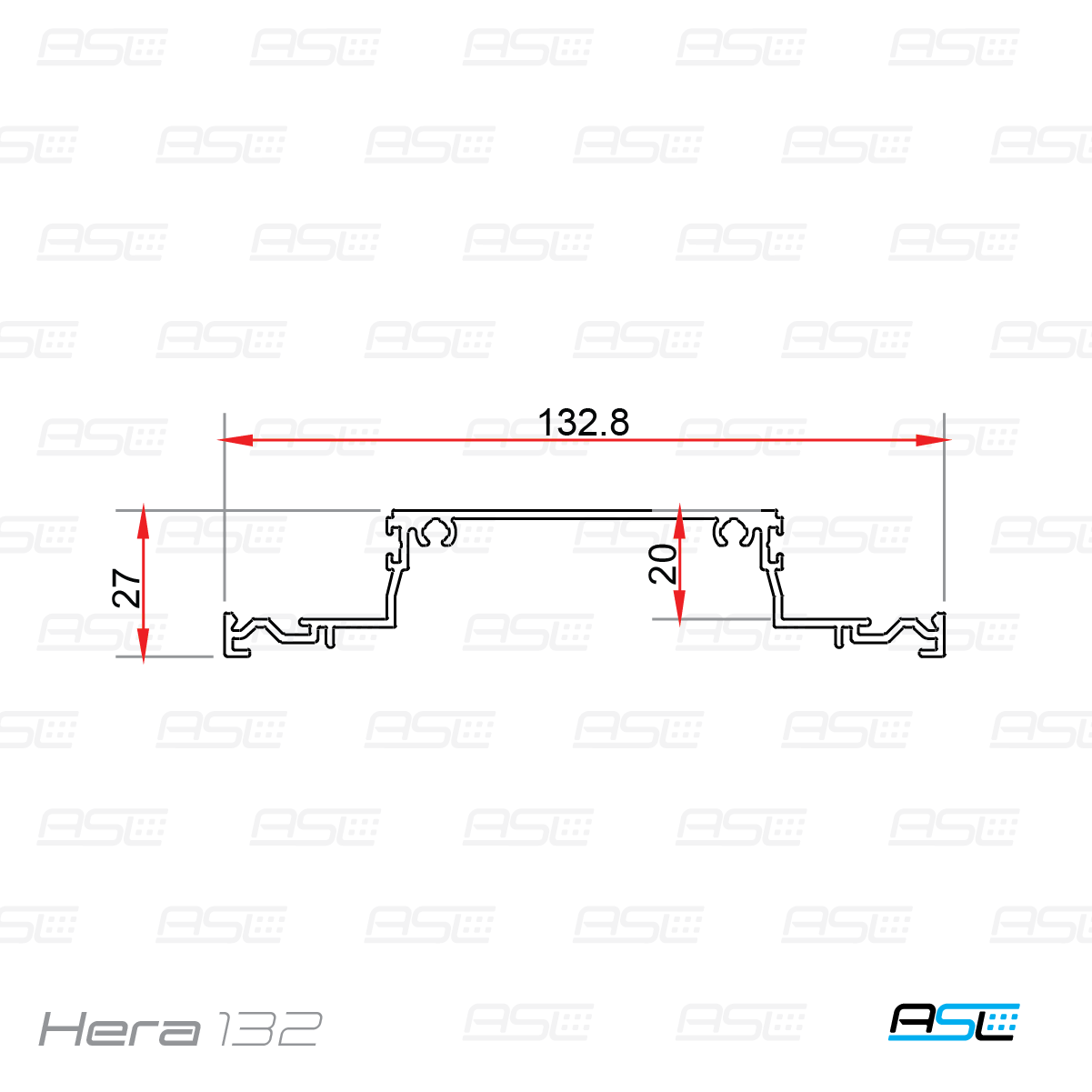

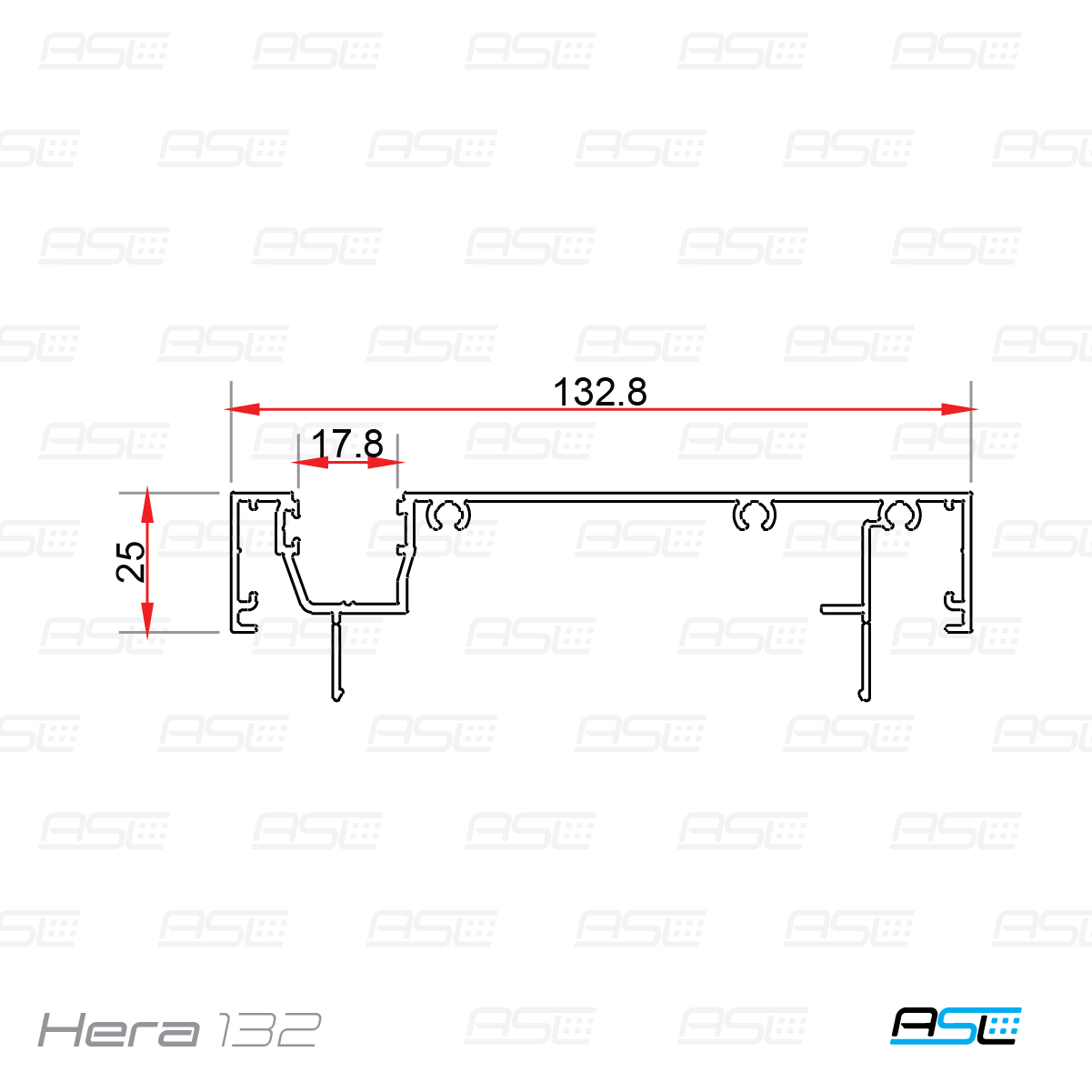

Tailored for a 92mm stud, Hera 132 is a versatile partitioning system offering a selection of centre, front, or twin glazing options, making it an optimal choice for a diverse range of projects. Its adaptability extends across various environments, from commercial office fitouts to educational spaces.

For design and shop drawing support please contact our design team at design@aluminate.nz

STANDARD SPECIFICATIONS:

  • Suited for 92mm steel stud. Designed to accommodate high stud ceilings.

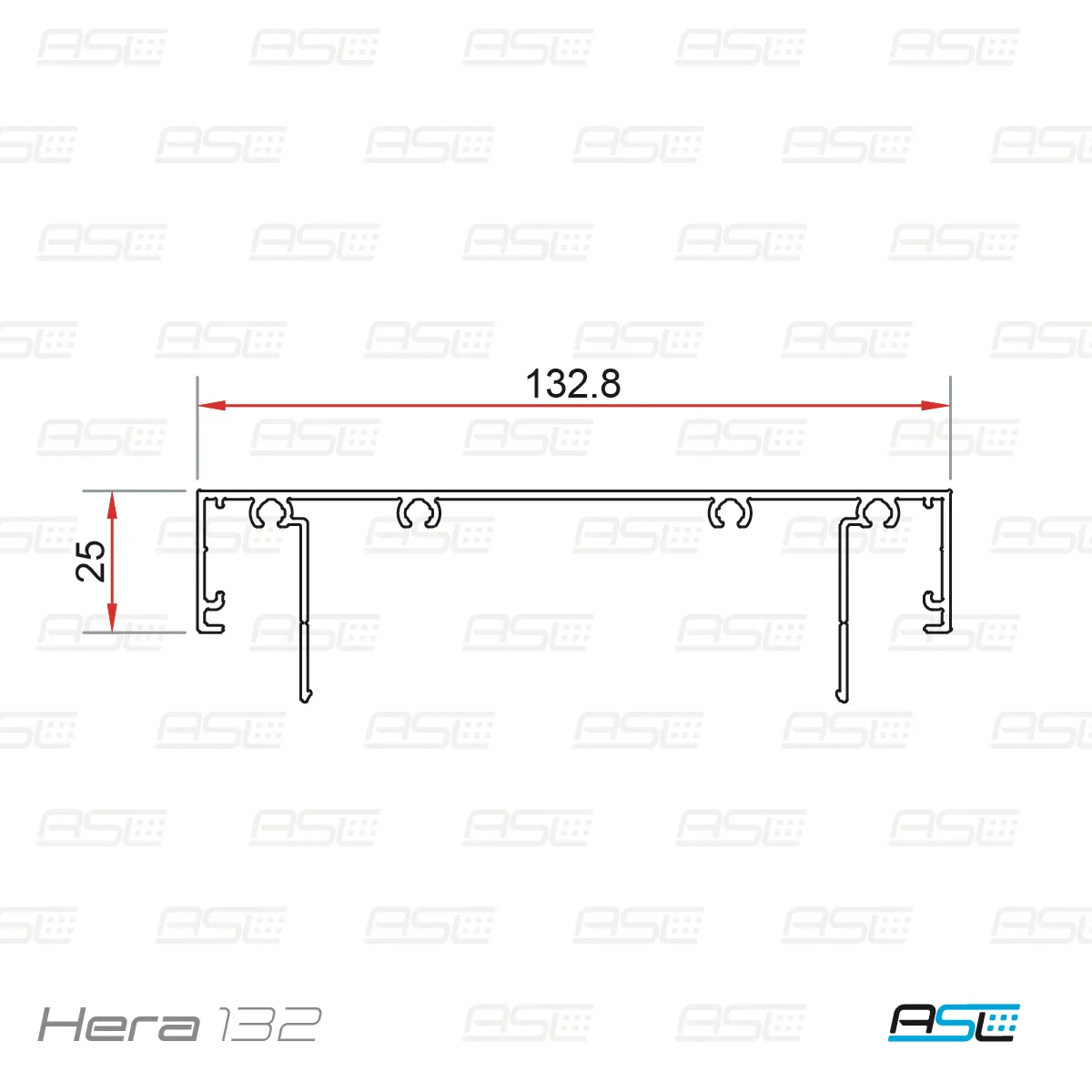

  • Profile dimensions of 132mm width and profile heights ranging from 25mm to 50mm.

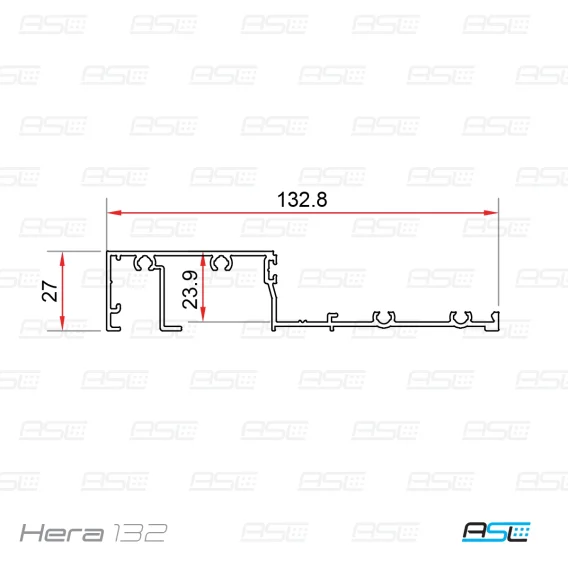

  • Effortlessly accommodates up to 13mm glass with captive wedge channel.

  • Incorporates built-in 10g screw ports and staking bracket locators for secure installation.

  • Includes a seismic head track system allowing for vertical deflection.

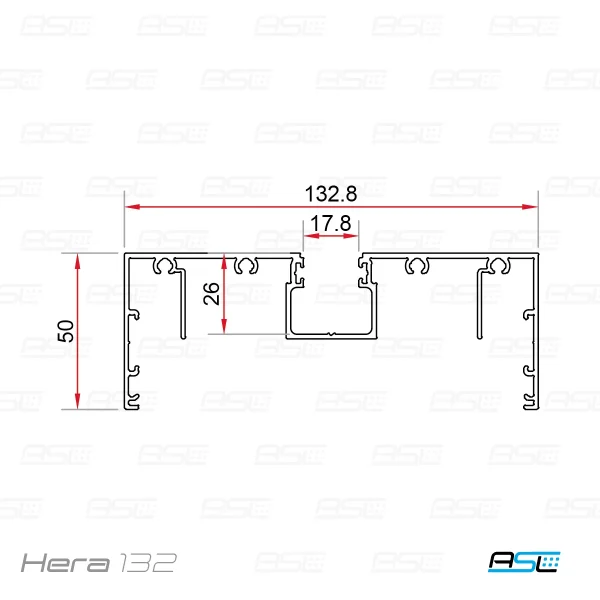

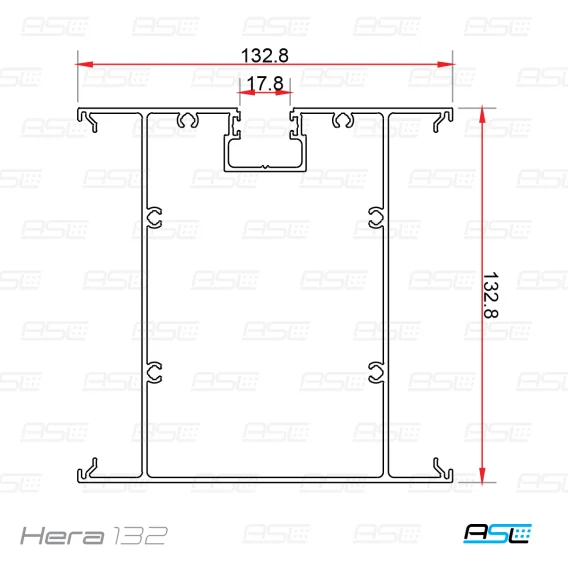

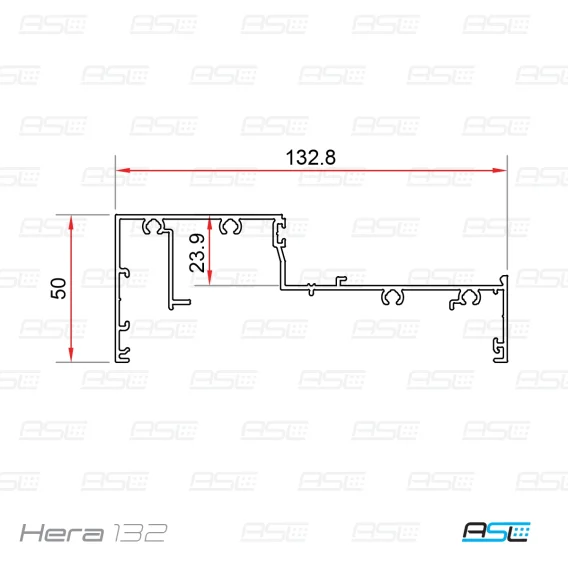

  • Diverse choices for mullions, transoms, and associated requirements

HERA132

Download files here:

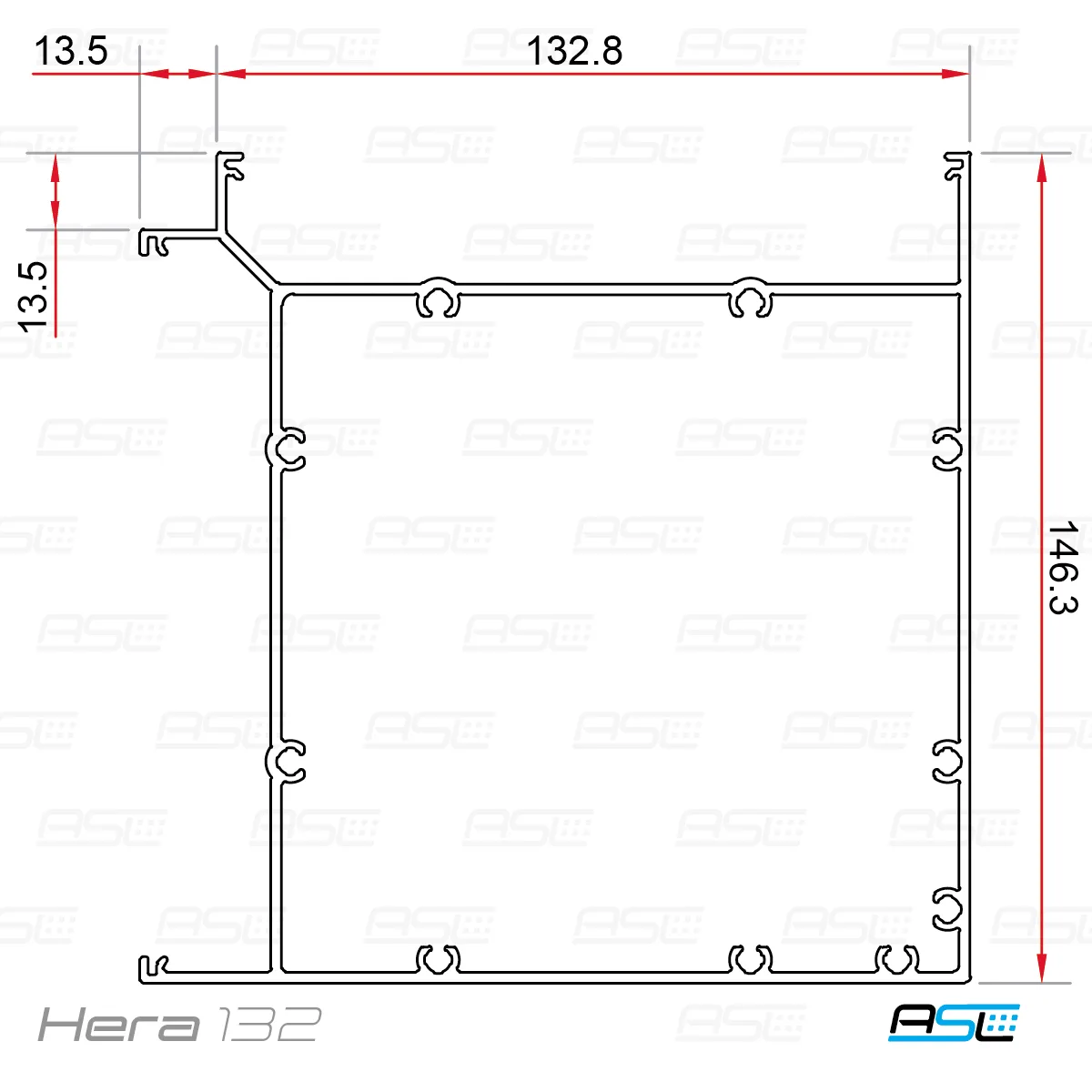

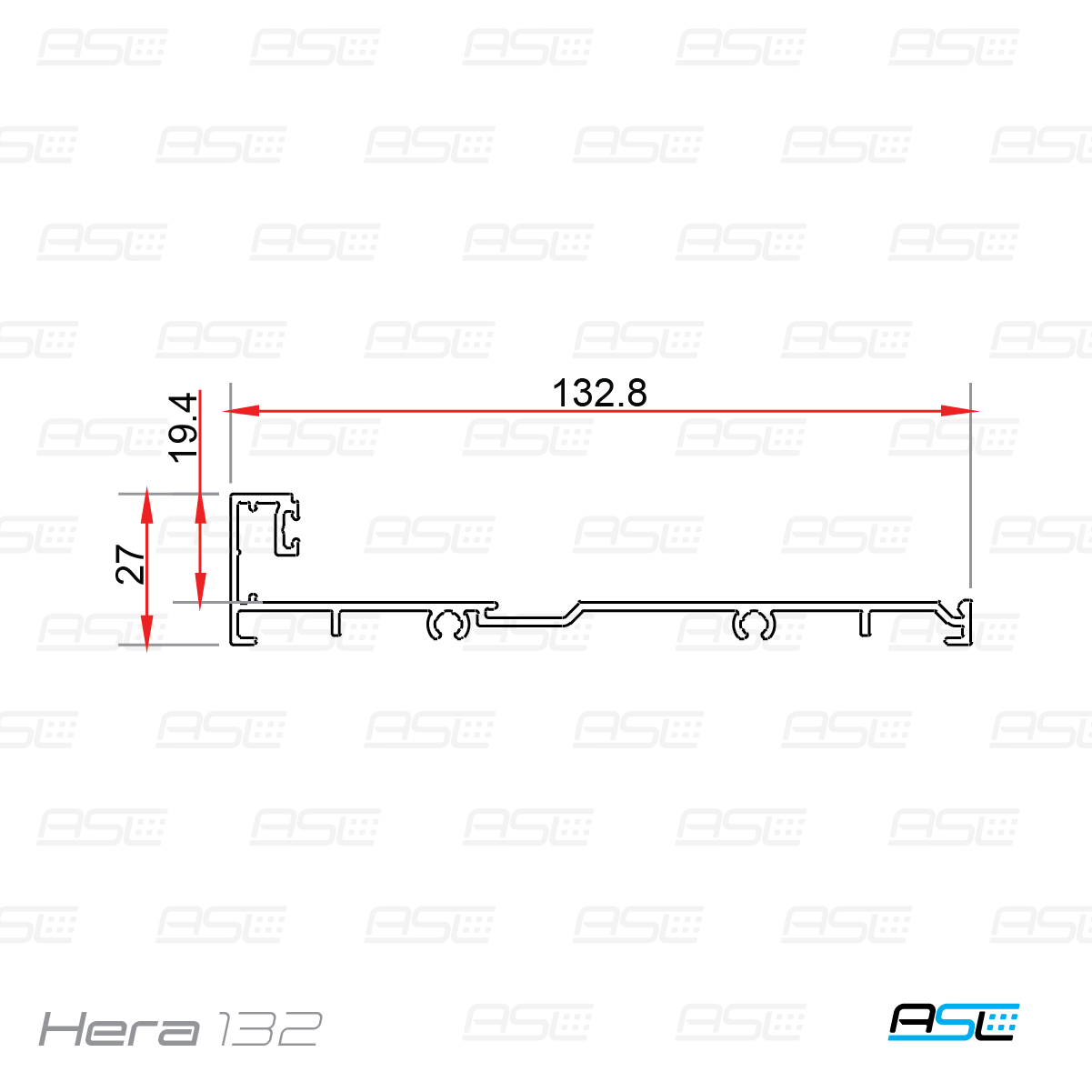

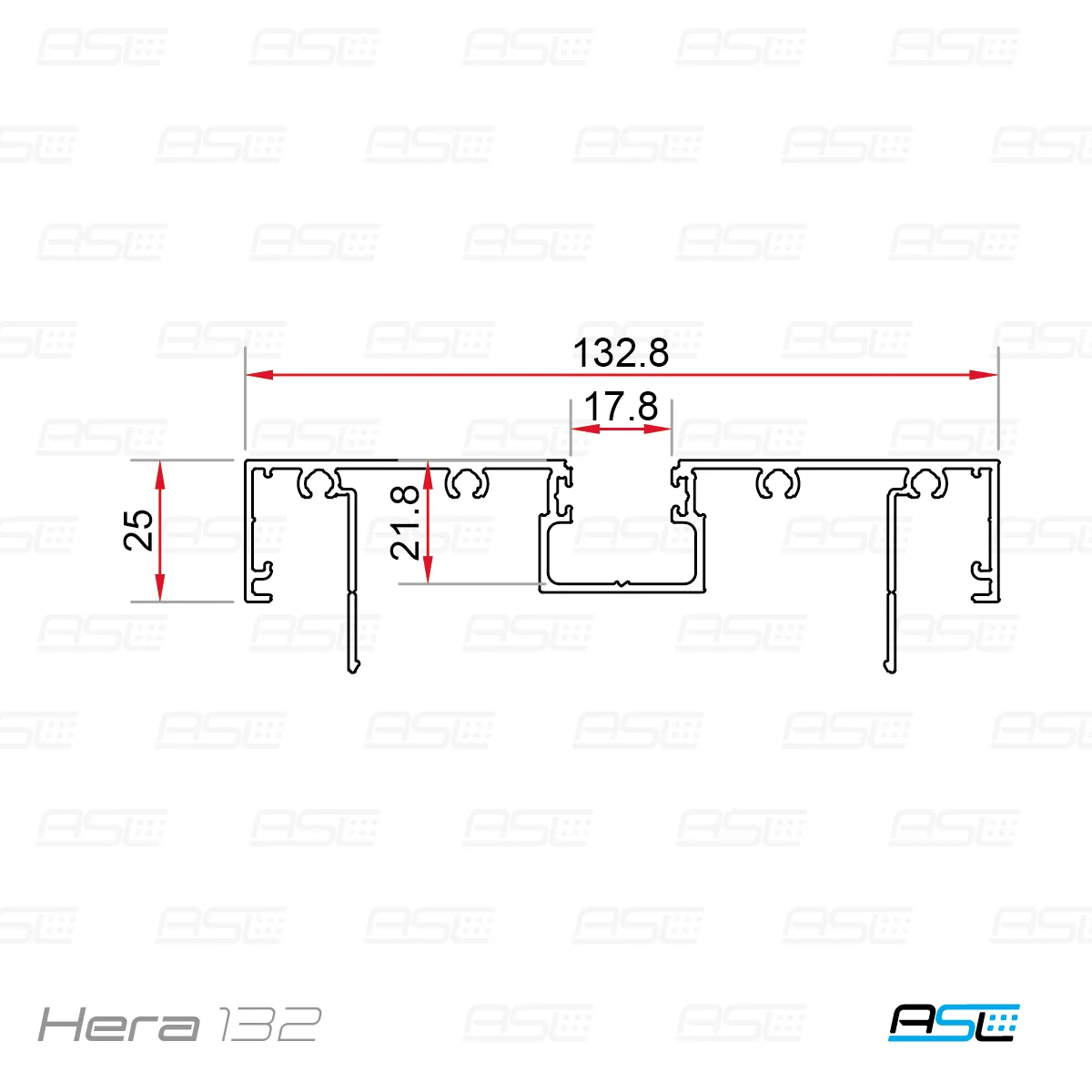

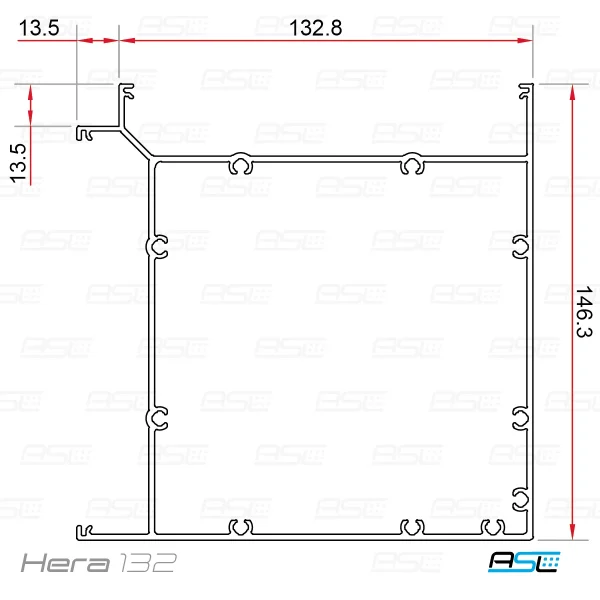

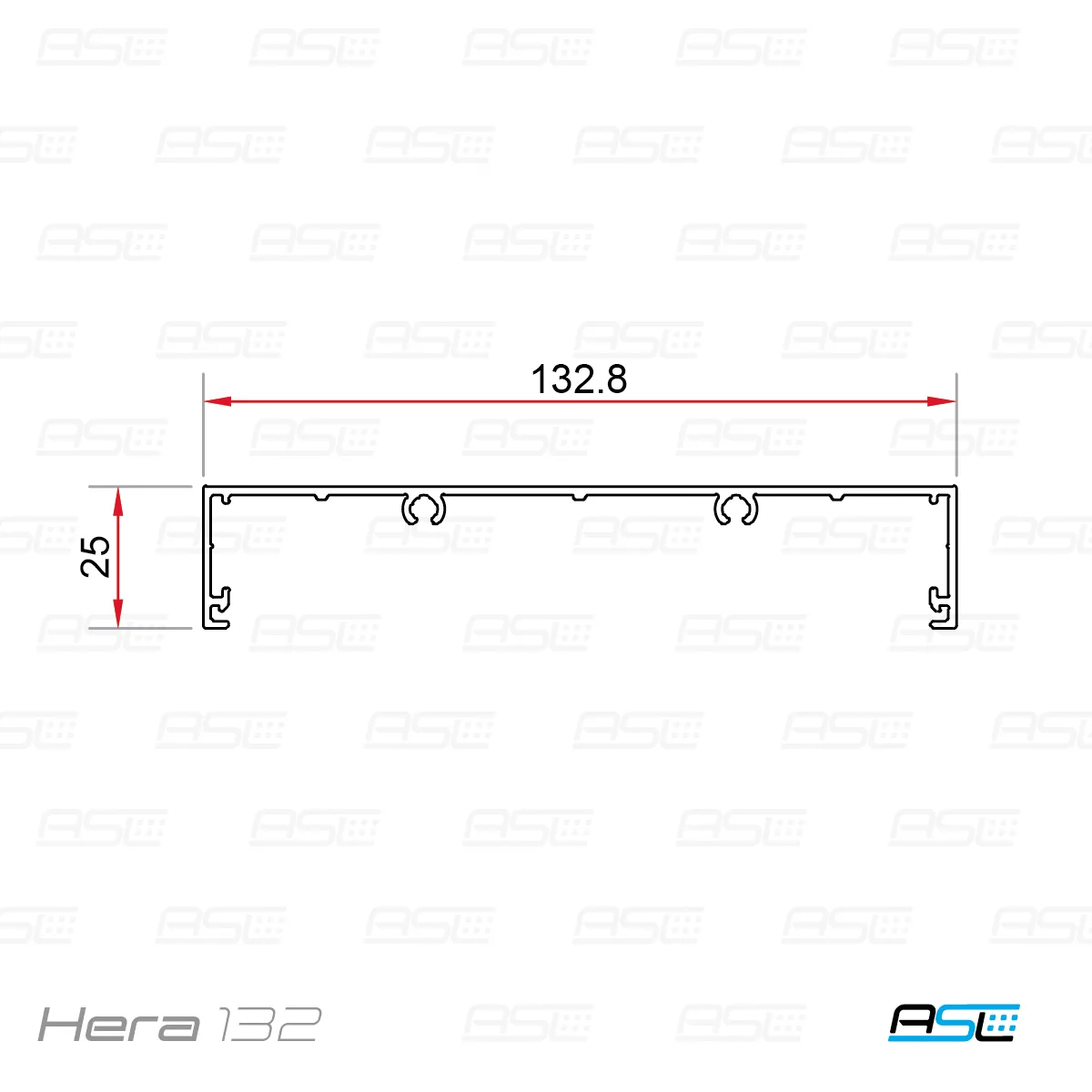

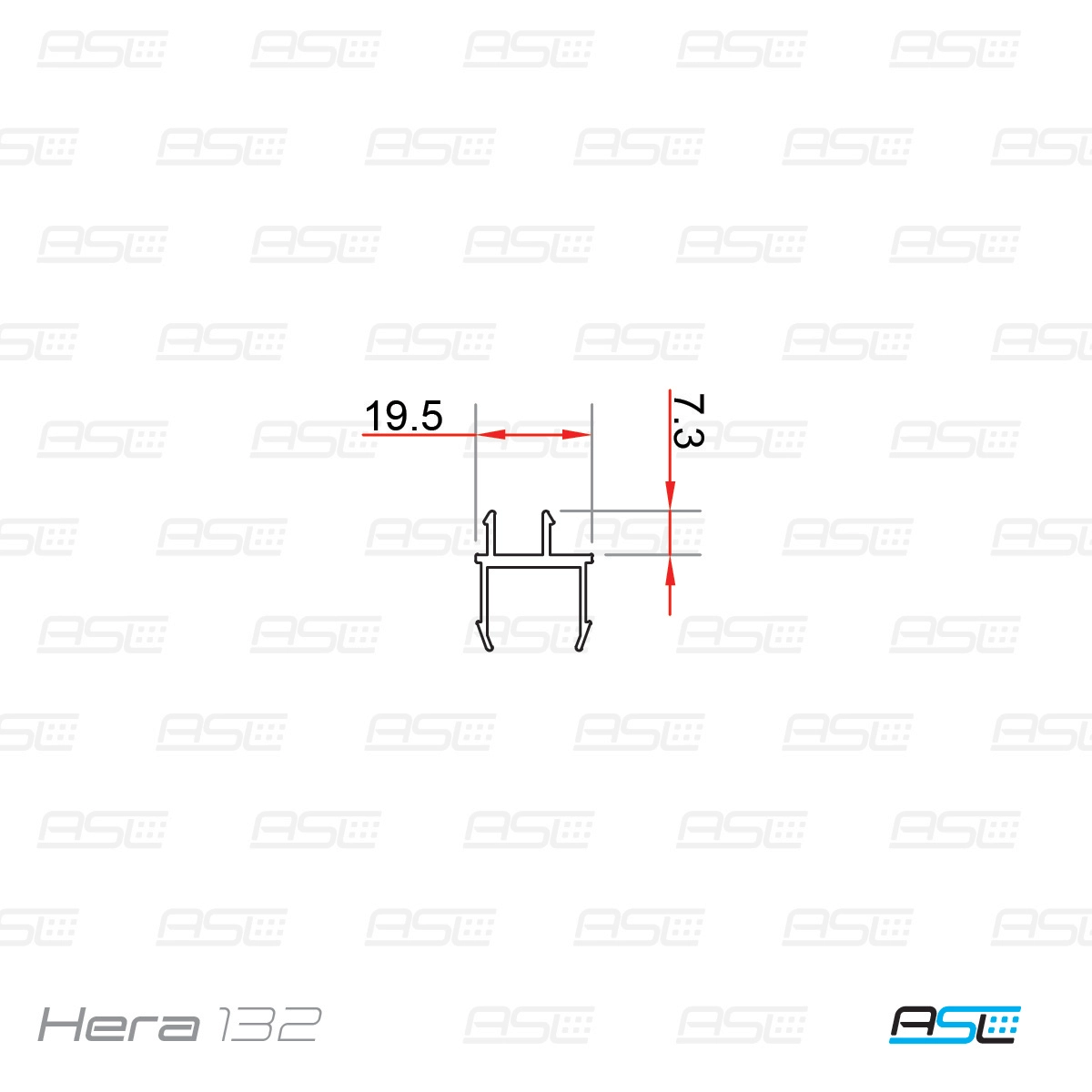

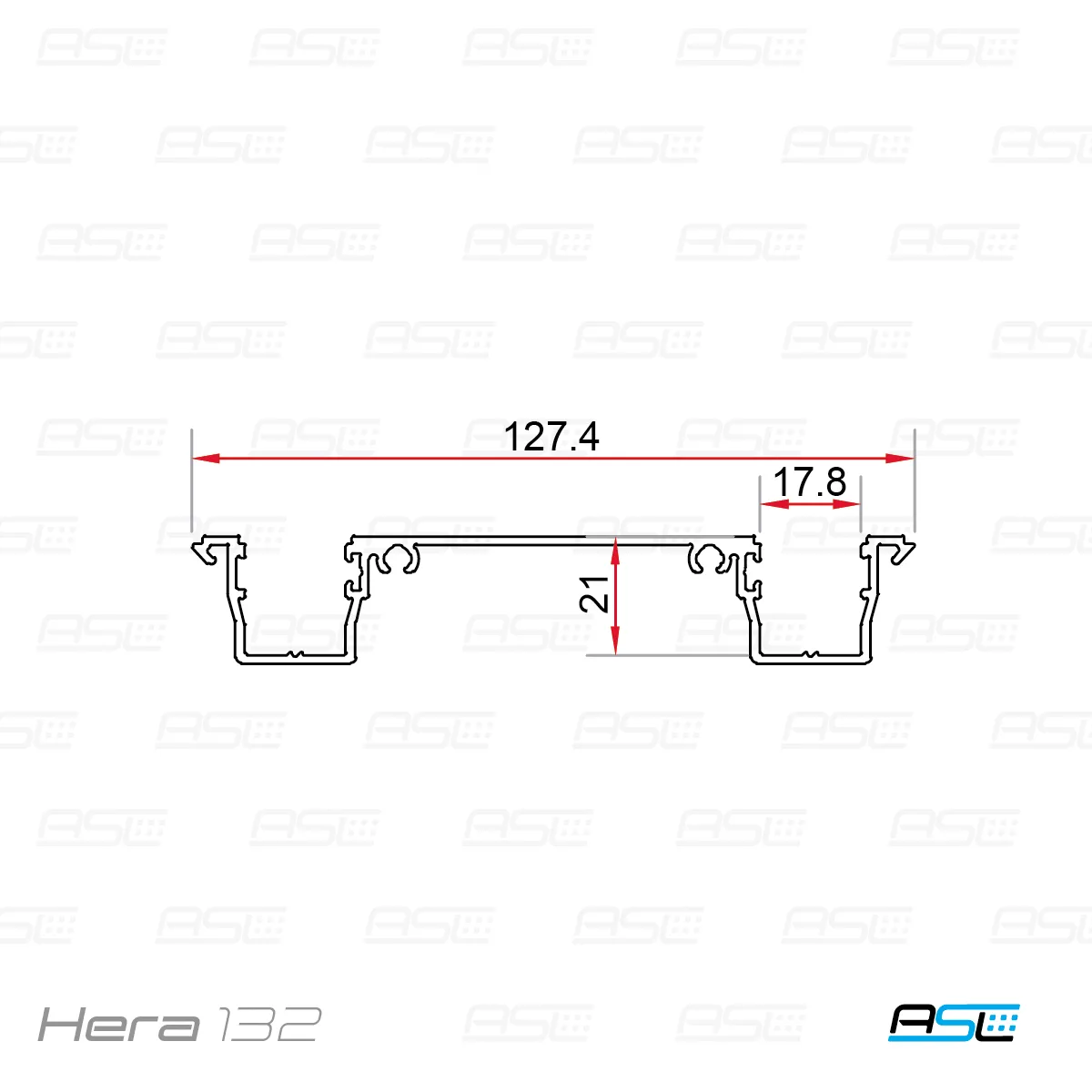

HERA 132 Profiles
